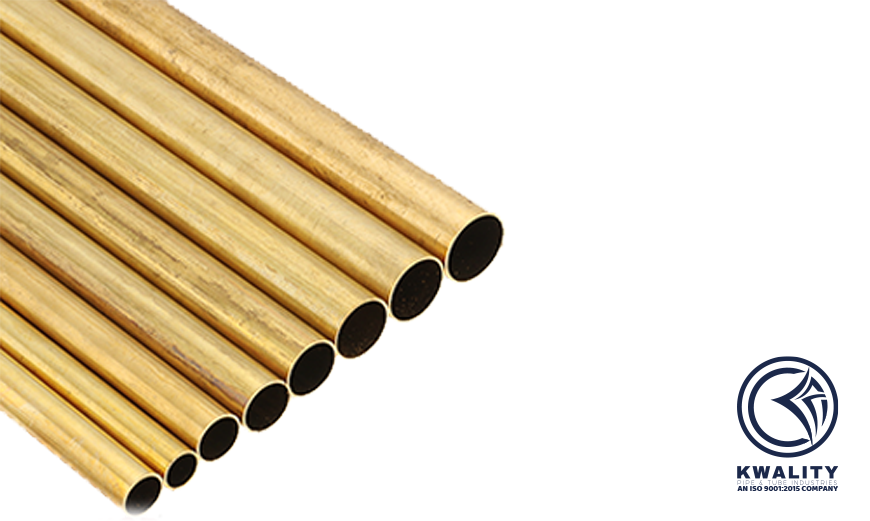

Lead Free Brass Tubes

Lead Free Brass Pipe

Description

C26000 has the highest ductility in the yellow brass series. Easily machined but is more often cold formed.

Application

Architecture

Automotive

Builders Hardware

Consumer

Electrical

Fasteners

Industrial

Ordinance

Equivalent Specification

SPECIFICATIONS	DESIGNATION
ISO	CuZn30
Europen	CuZn30
BS	CZ 106
JIS	C 2600
Russian	L70

CATEGORY	ASTM	BS	EN	JIS	DIN	ISO	IS
Cartridge Brass Yellow Brass	C26000	CZ106	CW505L	H3250(92)C2600 BE	2.0265	CuZn30	IS 4170 CUzn30 IS 4413 Cuzn30
Yellow Brass	C27000	CZ107	CW507L	H3250(92) C2700 BE	2.0335	CuZn36	IS 2704 Cuzn35

Chemical Composition

C26000 70/30 Lead Free Brass Pipe

	Cu	Fe	Pb	Zn
Min/Max	68.5 - 71.5	0.05	0.07	Rem
Nominals	70.0000	-	-	30.0000

C27000 65/35 Lead Free Brass Pipe

	Cu	Fe	Pb	Zn
Min/Max	63.0 - 68.5	0.07	0.09	Rem
Nominals	65.0000	-	-	35.0000

Physical Properties

C26000 70/30 Lead Free Brass Pipe

Coefficient of Thermal Expansion	11.1 10⁻⁶Per °F (68-572 F)
Density	0.308 lb/in3 @ 68 F
Electrical Conductivity	28 %IACS @ 68 F
Electrical Resistivity	37.0 ohms-cmil/ft @ 68 F
Melting Point Liquid US	1750 F
Melting Point Solid US	1680 F
Modulas of Elasticity in Tension	16000 ksi
Modulas of Rigidity	6000 ksi
Specific Gravity	8.53
Specific Heat Capacity	0.09 Btu/lb/°F @ 68 F
Thermal Conductivity	70 BTU in/hr.ft².°F @ 68 F

CC27000 65/35 Lead Free Brass Pipe

Coefficient of Thermal Expansion	11.8 10⁻⁶Per °F (68-572 F)
Density	0.306 lb/in3 @ 68 F
Electrical Conductivity	27 %IACS @ 68 F
Electrical Resistivity	38.4 ohms-cmil/ft @ 68 F
Melting Point Liquid US	1710 F
Melting Point Solid US	1660 F
Modulas of Elasticity in Tension	15000 ksi
Modulas of Rigidity	5600 ksi
Specific Gravity	8.47
Specific Heat Capacity	0.09 Btu/lb/°F @ 68 F
Thermal Conductivity	67.0 BTU in/hr.ft².°F @ 68 F

Kwality Pipe & Tube Industries was founded in early 70’s under the leadership of Shri. Ramanlal B Shah. He had established a reputed name as a manufacturer & exporter in the field of Copper & Copper Alloys Products. Having it’s a state of art manufacturing plant Situated in Atak Pardi, Dharampur Road, Valsad, Gujarat. Kwality Pipe & Tube Industries enjoys a strong presence in dispatching high-quality hot extruded & cold drawn Copper & Copper Alloys Products as per IS, ASTM, BS, DIN, JIS, or to client specification and standards
