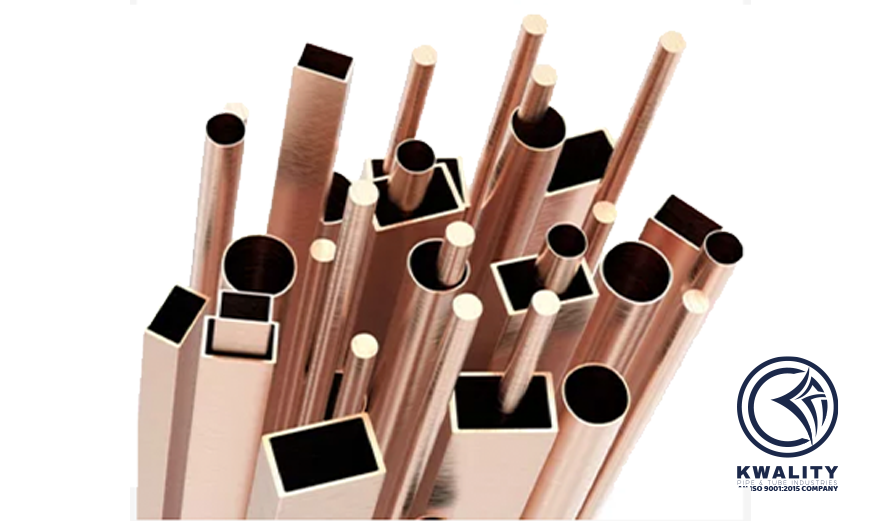

Copper Profiles, Rods & Sections

We understand the technicalities of working with copper, a softer metal than steel, and one that requires some extra skill in fabricating busbars. With our prototyping capability, we can usually provide samples of busbar, copper busbars and electrical busbar for evaluation. Our copper also finds numerous uses in electrical industries.

Some of the properties of copper used in this application are listed below -

Copper Alloy No.	Temper Desi.	Thickness		Tensile Stren. (N/ mm2)	Hard ness HV	Bend Test
		Over	Upto & incl.			Transverse	Longitudinal
C-1100	Annealed	0.5 mm	10 mm	210		Angle	Radius	Angle	Radius
	Half Hard	0.5 mm	2.0 mm	240	55max	180	Close	180	Close
	Half Hard	2.0 mm	10.0 mm	240	70-95	180	-	180	-
	Hard	0.5 mm	2.0 mm	310	70-95	180	-	180	-
	Hard	2.0 mm	10.0 mm	290	90min	90	-	90	-
					90min	90	-	90	-

Chemical Properties
No.	Purity	Oxygen Content.
	Cu	PPM
C11000	99.90 (min)	Upto 250 ppm

Physical Properties
No.	Temper	Description.					Conductivity % (20°C)
C1100	0	C1100BB-0					100% (min)
	1/4H	C1100BB-1/4H					95% (min)
	1/2H	C1100BB-1/2H					98% (min)
	H	C1100BB-H					97.16% (min)

Chamfering Radius
Thickness	Chamfering Radius
2mm (min) / 5mm (max)	0.8
5mm (min) / 8mm (max)	1.2
8mm (min) / 30mm (max)	1.6
