Description
Cupro Nickel Bar is an alloy of copper that contains nickel and other strengthening elements such as iron and manganese. The addition of copper and nickel alloy in the right amount makes it a superior quality product. Due to its superior quality it has become very much high in demand.
Copper Nickel Flat Bar is a kind of metal product bearing rectangle section. It is used in a wide range of structural and architectural applications. It can only be hardened by cold working. It has high corrosion resistance together with resistance to corrosion fatigue.

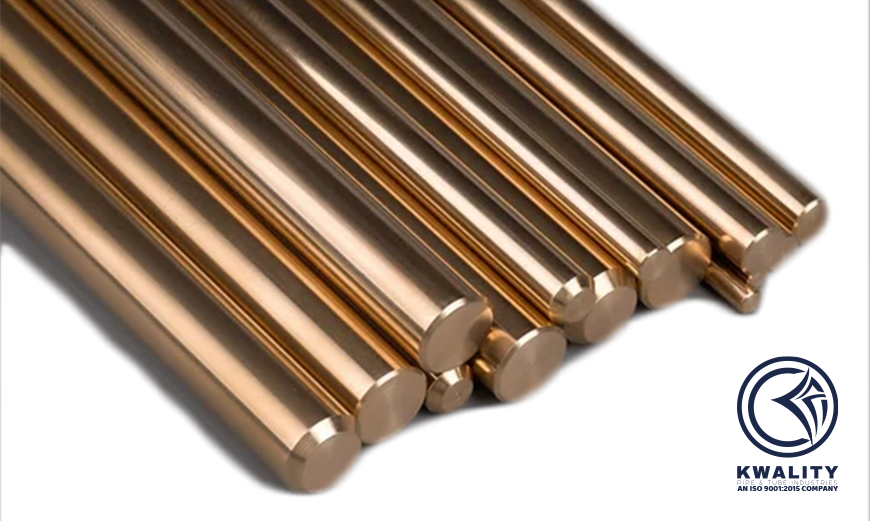

Cupro Nickel Round Bar resists corrosive and erosive actions of rapidly moving seawater. The corrosion resistance of it increases with increasing nickel content. Copper Nickel Round Baris a long, cylindrical copper nickel bar stock that has many industrial and commercial applications and the most common application includes shafts. Cuni Round Bar is moderately hard also but tough and ductile. Cupronickels rods with 10 and 30% nickel are very commonly employed for condenser, distiller, evaporator, and heat exchanger tubes. The common heat treatment applied to it is annealing after cold working. It is highly resistant to corrosion by salt water, and hence it is useful for heat exchangers and condensers in seawater systems.
Copper Nickel Round Bar is also known as cupronickel round bar which is widely used for marine applications due to its good fabricability, excellent resistance to seawater corrosion and low macro fouling rates.
Application
Standard Specification
| Specifications | ASTM B151, ASME SB151 |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Range |
5 To 500 mm thick in 100 TO 6000 mm |
| Cu-Ni Round Bars |
6 to 120 mm. |
| Cu-Ni Square Bars | 10 to 200 mm. |
| Finish | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Length | 100 to 3660 mm Long |
| Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
Copper Nickel Round Bar Surface Finish
| CD | Cold drawn | P | Polished |
| BD | Bright drawn | SRE | Slit rolled edge |
| CG | Centreless ground | HF | Hot finished |
| CF | Cold finished | HRAP | Hot rolled annealed and pickled |
| P&T | Peeled and turned | RT | Rough turned/peeled |
| ST | Smooth turned | PR | Peeled and reeled |
Copper Nickel Round bar Temper
| H&T | Hardened and tempered. |
| ANN | Annealed |
| PH | Precipitation hardened. |
Copper Nickel Size Chart Flat Bar
| Flat bar – metric sizes and weights | |||
|---|---|---|---|
| Flat Size | KG’s per Metre | Standard Length (metres) | Colour Code |
| 10 x 3 | 0.24 | 6.0 | Blue |
| 13 x 3 | 0.31 | 6.0 | Blue |
| 13 x 5 | 0.46 | 6.0 | Orange |
| 16 x 3 | 0.38 | 6.0 | Blue |
| 16 x 5 | 0.64 | 6.0 | Orange |
| 16 x 8 | 1.03 | 6.0 | Red |
| 20 x 3 | 0.48 | 6.0 | Blue |
| 20 x 5 | 0.81 | 6.0 | Orange |
| 20 x 6 | 0.97 | 6.0 | White |
| 20 x 10 | 1.61 | 6.0 | Yellow |
| 25 x 3 | 0.60 | 6.0 | Blue |
| 25 x 5 | 1.01 | 6.0 | Orange |
| 25 x 6 | 1.21 | 6.0 | White |
| 25 x 8 | 1.61 | 6.0 | Red |
| 25 x 10 | 2.01 | 6.0 | Yellow |
| 25 x 12 | 2.41 | 6.0 | Pink |
| 32 x 3 | 0.77 | 6.0 | Blue |
| 32 x 5 | 1.29 | 6.0 | Orange |
| 32 x 6 | 1.55 | 6.0 | White |
| 32 x 8 | 2.06 | 6.0 | Red |
| 32 x 10 | 2.58 | 6.0 | Yellow |
| 32 x 12 | 3.09 | 6.0 | Pink |
| 40 x 3 | 0.97 | 6.0 | Blue |
| 40 x 5 | 1.61 | 6.0 | Orange |
| 40 x 6 | 1.93 | 6.0 | White |
| 40 x 8 | 2.58 | 6.0 | Red |
| 40 x 10 | 3.22 | 6.0 | Yellow |
| 40 x 12 | 3.86 | 6.0 | Pink |
| 40 x 16 | 5.15 | 6.0 | Grey |
| 40 x 20 | 6.14 | 6.0 | Green |
| 50 x 3 | 1.21 | 6.0 | Blue |
| 50 x 5 | 2.01 | 6.0 | Orange |
| 50 x 6 | 2.41 | 6.0 | White |
| 50 x 8 | 3.22 | 6.0 | Red |
| 50 x 10 | 4.02 | 6.0 | Yellow |
| 50 x 12 | 4.83 | 6.0 | Pink |
| 50 x 16 | 6.44 | 6.0 | Grey |
| 50 x 20 | 8.05 | 6.0 | Green |
| 50 x 25 | 10.1 | 6.0 | Purple |
| 65 x 3 | 1.57 | 6.0 | Blue |
| 65 x 5 | 2.62 | 6.0 | Orange |
| 65 x 6 | 3.14 | 6.0 | White |
| 65 x 8 | 4.18 | 6.0 | Red |
| 65 x 10 | 5.23 | 6.0 | Yellow |
| 65 x 12 | 6.28 | 6.0 | Pink |
| 65 x 16 | 8.37 | 6.0 | Grey |
| 65 x 20 | 10.5 | 6.0 | Green |
| 65 x 25 | 13.1 | 6.0 | Purple |
| 75 x 5 | 3.02 | 6.0 | Orange |
| 75 x 6 | 3.62 | 6.0 | White |
| 75 x 8 | 4.83 | 6.0 | Red |
| 75 x 10 | 6.04 | 6.0 | Yellow |
| 75 x 12 | 7.24 | 6.0 | Pink |
| 75 x 16 | 9.66 | 6.0 | Grey |
| 75 x 20 | 12.1 | 6.0 | Green |
| 75 x 25 | 15.1 | 6.0 | Purple |
| 75 x 40 | 24.1 | 6.0 | Yellow |
| 90 x 5 | 3.62 | 6.0 | Orange |
| 90 x 6 | 4.35 | 6.0 | White |
| 90 x 8 | 5.79 | 6.0 | Red |
| 90 x 10 | 7.24 | 6.0 | Yellow |
| 90 x 12 | 8.69 | 6.0 | Pink |
| 100 x 5 | 4.02 | 6.0 | Orange |
| 100 x 6 | 4.83 | 6.0 | White |
| 100 x 8 | 6.44 | 6.0 | Red |
| 100 x 10 | 8.05 | 6.0 | Yellow |
| 100 x 12 | 9.66 | 6.0 | Pink |
| 100 x 16 | 12.9 | 6.0 | Grey |
| 100 x 20 | 16.1 | 6.0 | Green |
| 100 x 25 | 20.1 | 6.0 | Purple |
| 100 x 50 | 40.2 | 6.0 | Green |
| 110 x 6 | 5.31 | 6.0 | White |
| 110 x 8 | 7.08 | 6.0 | Red |
| 110 x 10 | 8.85 | 6.0 | Yellow |
| 110 x 12 | 10.6 | 6.0 | Pink |
| 130 x 5 | 5.23 | 6.0 | Orange |
| 130 x 6 | 6.28 | 6.0 | White |
| 130 x 8 | 8.37 | 6.0 | Red |
| 130 x 10 | 10.5 | 6.0 | Yellow |
| 130 x 12 | 12.6 | 6.0 | Pink |
| 130 x 16 | 16.7 | 6.0 | Grey |
| 130 x 20 | 20.9 | 6.0 | Green |
| 130 x 25 | 26.2 | 6.0 | Purple |
| 150 x 5 | 6.04 | 6.0 | Orange |
| 150 x 6 | 7.24 | 6.0 | White |
| 150 x 8 | 9.66 | 6.0 | Red |
| 150 x 10 | 12.1 | 6.0 | Yellow |
| 150 x 12 | 14.5 | 6.0 | Pink |
| 150 x 16 | 19.3 | 6.0 | Grey |
| 150 x 20 | 24.1 | 6.0 | Green |
| 150 x 25 | 30.1 | 6.0 | Purple |
| 150 x 50 | 60.4 | 6.0 | Green |
| 180 x 5 | 7.24 | 6.0 | Orange |
| 180 x 6 | 8.69 | 6.0 | White |
| 180 x 10 | 14.5 | 6.0 | Yellow |
| 180 x 12 | 17.4 | 6.0 | Pink |
| 180 x 16 | 23.2 | 6.0 | Grey |
| 180 x 20 | 29.0 | 6.0 | Green |
| 180 x 25 | 36.2 | 6.0 | Purple |
| 200 x 6 | 9.66 | 6.0 | White |
| 200 x 8 | 12.9 | 6.0 | Red |
| 200 x 10 | 16.1 | 6.0 | Yellow |
| 200 x 12 | 19.3 | 6.0 | Pink |
| 200 x 16 | 25.7 | 6.0 | Grey |
| 200 x 20 | 32.2 | 6.0 | Green |
| 200 x 25 | 40.3 | 6.0 | Purple |
| 250 x 6 | 12.1 | 6.0 | White |
| 250 x 8 | 16.1 | 6.0 | Red |
| 250 x 10 | 20.1 | 6.0 | Yellow |
| 250 x 12 | 24.1 | 6.0 | Pink |
| 250 x 16 | 32.2 | 6.0 | Grey |
| 250 x 20 | 40.2 | 6.0 | Green |
| 250 x 25 | 50.3 | 6.0 | Purple |
| 300 x 6 | 14.5 | 6.0 | White |
| 300 x 8 | 19.3 | 6.0 | Red |
| 300 x 10 | 24.1 | 6.0 | Yellow |
| 300 x 12 | 29.0 | 6.0 | Pink |
| 300 x 16 | 38.6 | 6.0 | Grey |
| 300 x 20 | 48.3 | 6.0 | Green |
| 300 x 25 | 60.4 | 6.0 | Purple |
Copper Nickel Size Chart Round Bar
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
Copper Nickel Bars & Rods Chemical Composition
| UNS No. | Copper + Silver | Nickel + Cobalt | Manganese | Lead | Iron | Zinc | Phosphorus | Sulfur | Carbon |
|---|---|---|---|---|---|---|---|---|---|
| C71500 | remainder | 29.0-33.0 | 1.0 max | 0.05a max | 0.40-1.0 | 1.0a | |||
| C71520 | 65.0 min | 29.0-33.0 | 1.0 max | 0.02 | 0.40-1.0 | 0.5 | 0.02 max | 0.02 max | 0.05 max |
Copper Nickel Bars & Rods Mechanical Properties
| Element | Copper Nickel 90/10 | Copper Nickel 70/30 |
| Density | 8.1 g/cm3 | 0.323 lb/in3 at 68 F |
| Melting Point | 1443 °C (2430 °F) | 2260 F |
| Tensile Strength | Psi -80,000, MPa -551 | 50000 psi |
| Yield Strength (0.2%Offset) | Psi - 35,000, MPa - 241 | 20000 psi |
| Elongation | 30 % | 30 % |
Copper Nickel Equivalent Standards
| Standard | Cu-Ni 90/10 | Cu-Ni 70/30 |
| UNS | C70600 | C71500 |
| Werkstoff Nr. | 2.0872 | 2.0882 |
